Our Products
Professional insulation materials for motor and transformer manufacturing
Showing 25 products
Request Quote

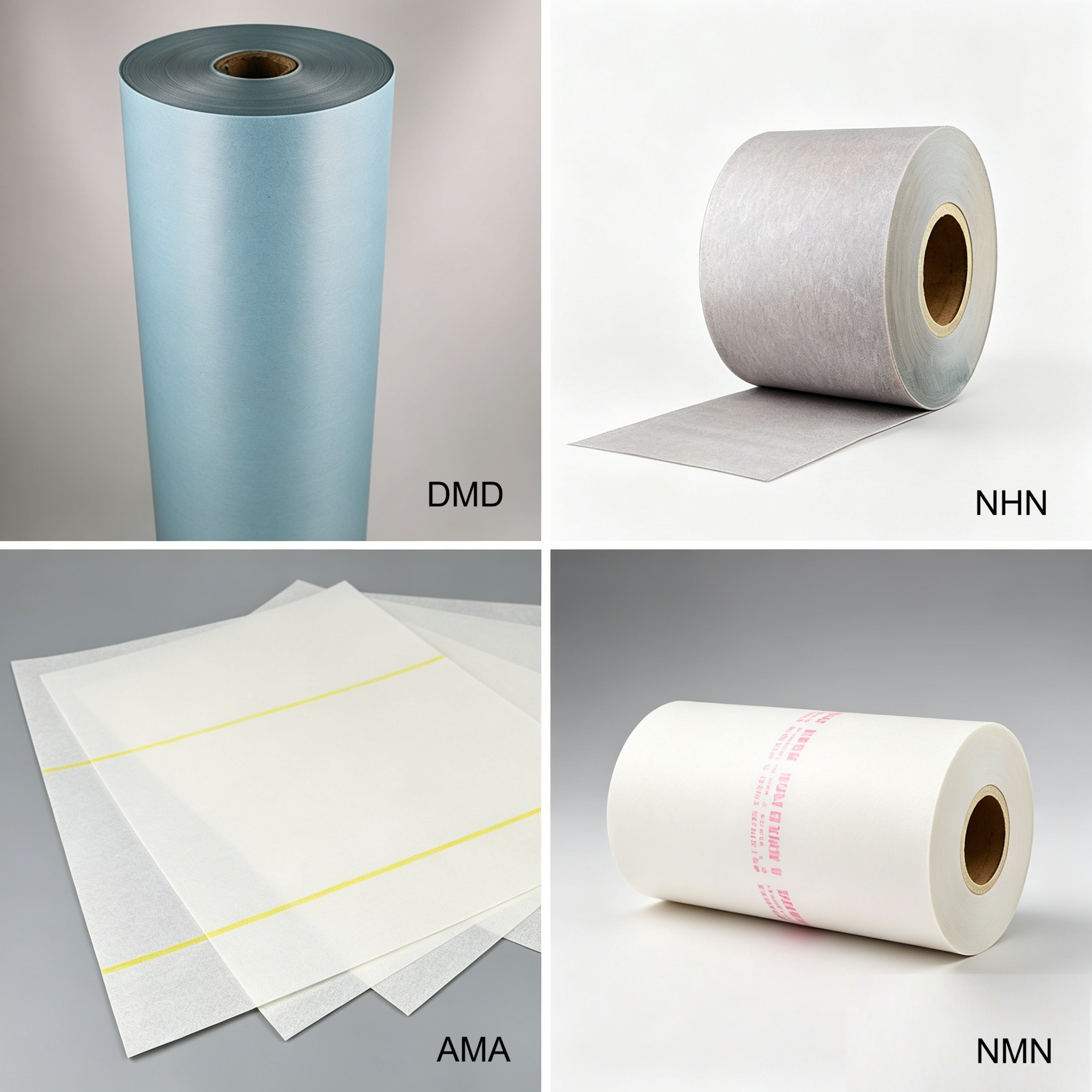

DMD AMA NMN NHN
Flexible composite insulation materials for motor and transformer applications
Thickness: 0.14-0.50mm | Temp Class: B/F/H (130-180°C)
View Details

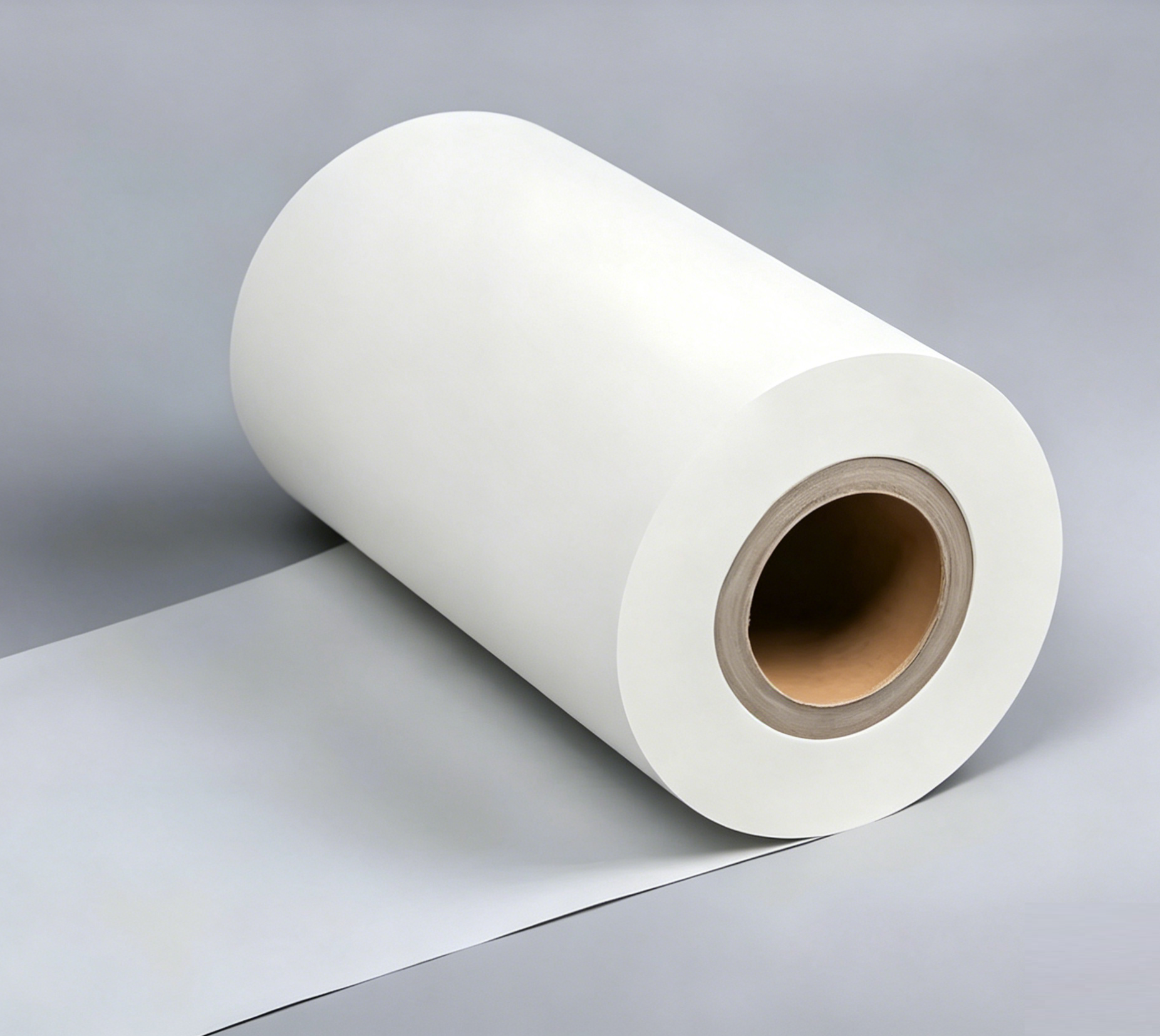

ARAMID PAPER
Aramid paper is a high-temperature resistant insulating paper mainly composed of poly(m-phenylene isophthalamide) fibers. After being processed into various sheets, it has extremely high electrical, chemical and mechanical integrity.
Thickness: 0.05-0.76mm | Temp Class: H (180°C)
View Details

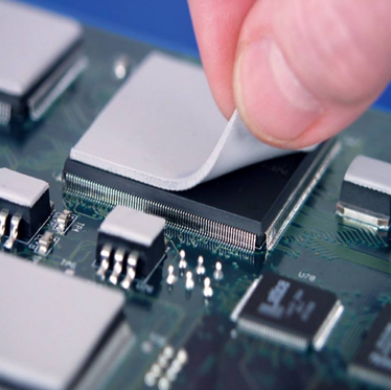

THERMAL CONDUCTIVE SILICONE PAD
Thermal silicone pad is a very cost-effective general economic thermal gap filling gasket, soft with its own micro-stick, easy assembly. Under low compressing force to show good thermal conductivity and electrical insulation properties.
Thermal Conductivity: 1.5-8.0 W/m·K | Temp Range: -40°C to +200°C
View Details

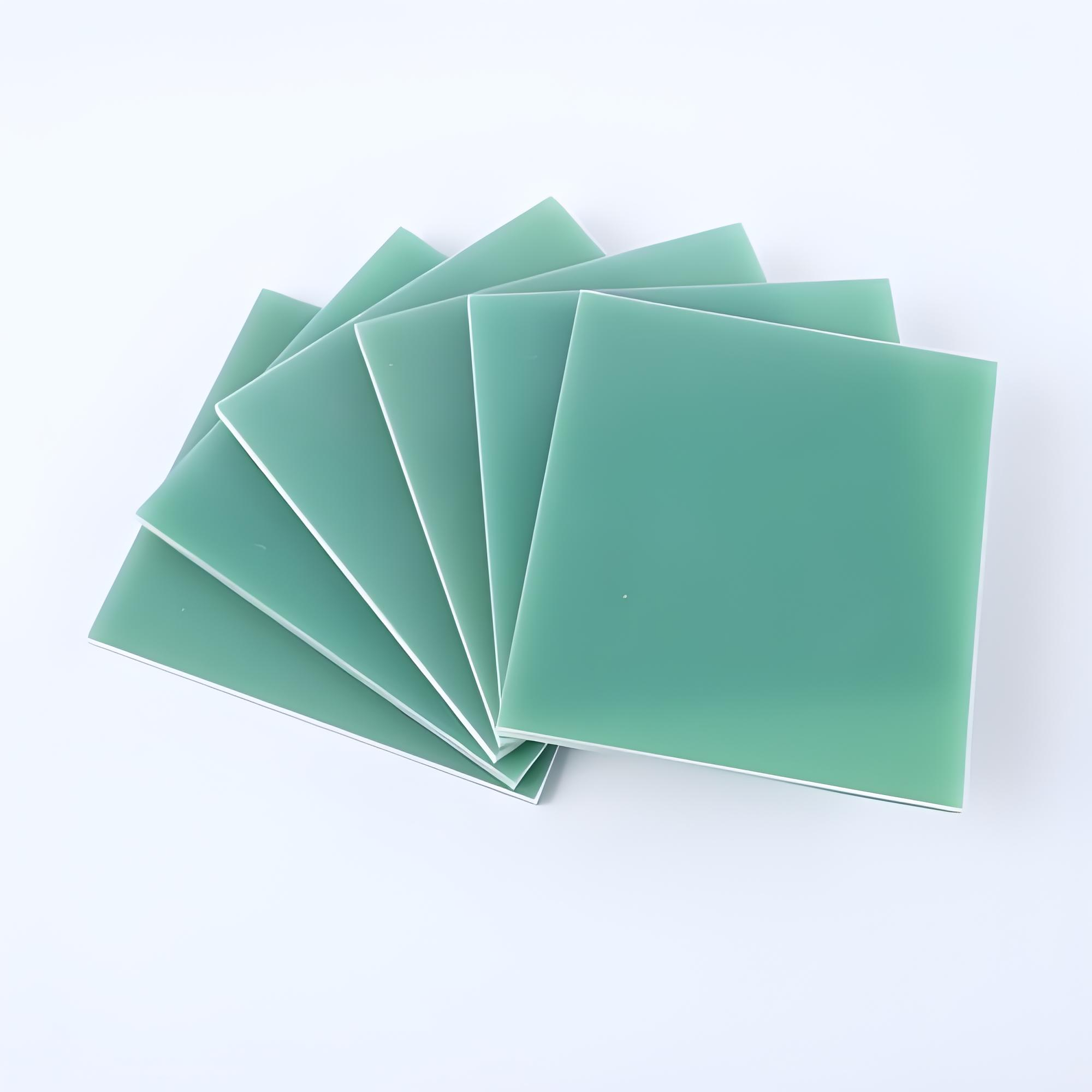

G10 G11 EPGC SERIES
The G10/G11/EPGC series epoxy boards are all made of glass cloth as the base material (G10/G11 are electronic-grade glass cloth, while the EPGC series uses 7628 glass cloth). They are impregnated with epoxy resin system glue and cured through high-temperature hot pressing to form rigid laminated insulating boards.
Thickness: 0.5-50mm | Temp Class: F (155°C)
View Details

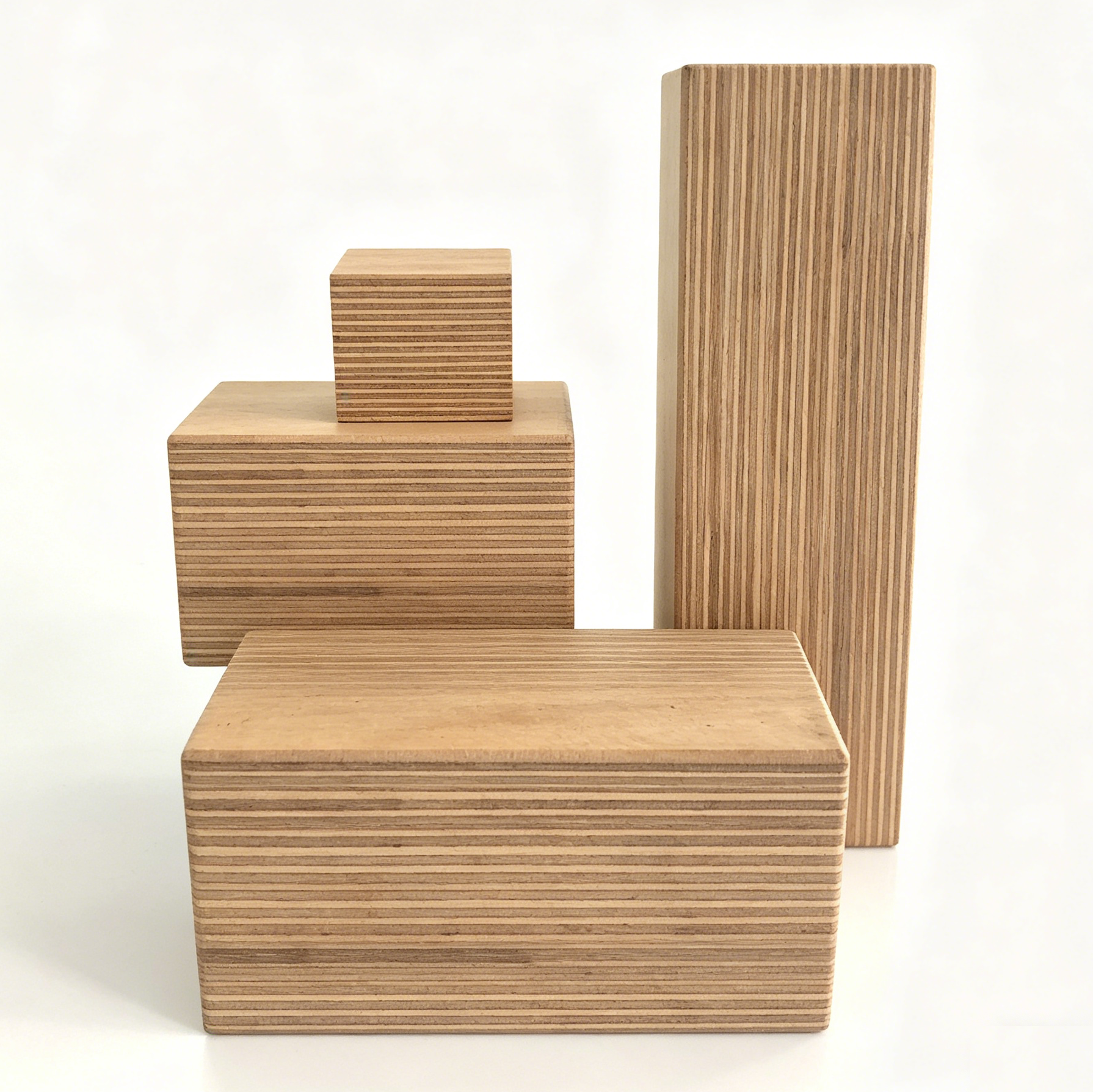

HIGH DENSITY LAMINATED WOODS
The electrical laminated wood board is made from high-quality woods such as birch, color wood, and ash, which are processed through steaming, rotary cutting, and drying to produce veneer sheets. After being coated with a special insulating adhesive, these sheets are laminated and pressed under high temperature and pressure to form an insulating laminated board.
Thickness: 0.5-50mm | Temp Class: A (105°C)
View Details

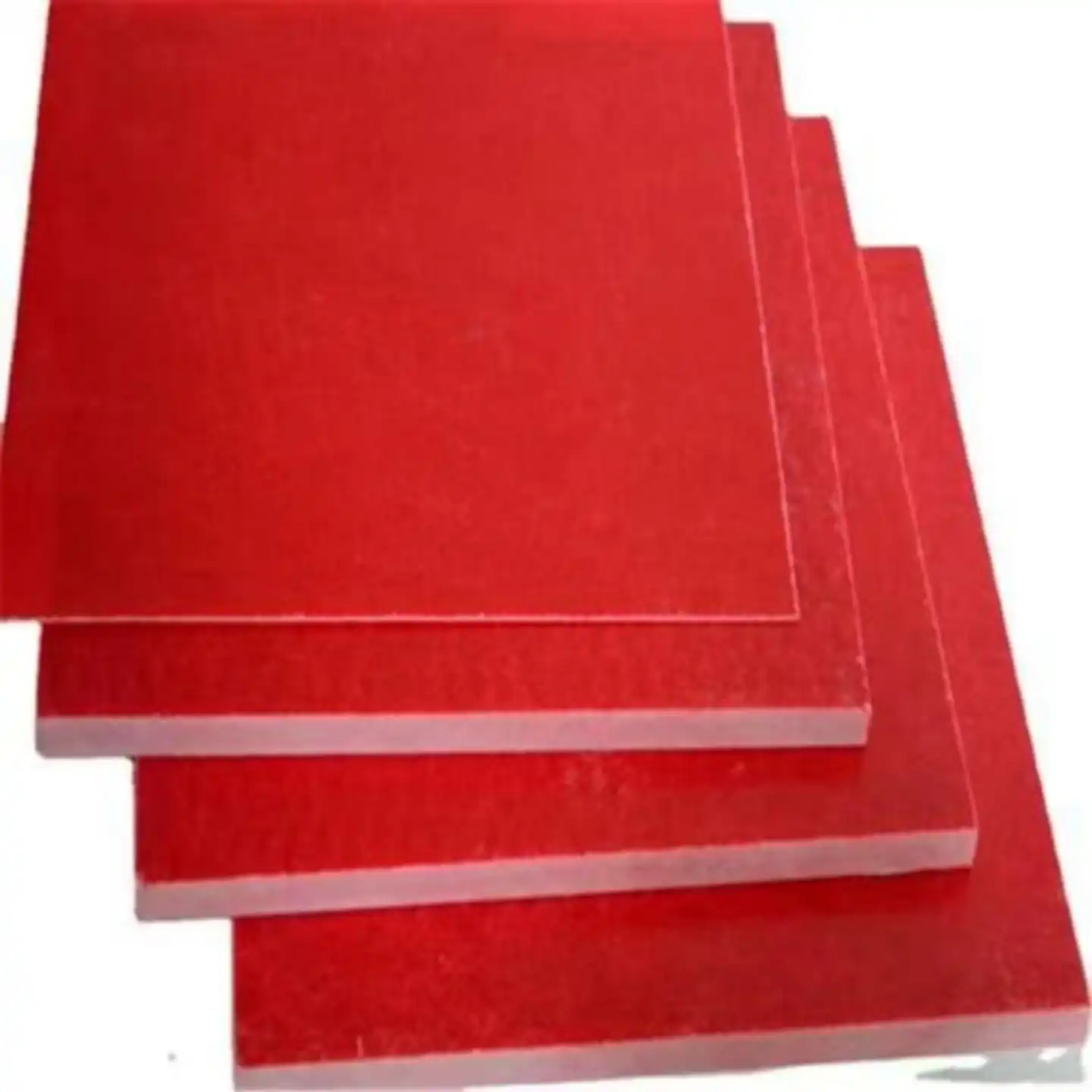

GPO3
Unsaturated polyester glass fiber reinforced sheet with excellent electrical insulation, flame retardancy and arc resistance
Thickness: 0.8-50mm | Temp Class: F (155°C)
View Details
MICA SHEET
High-temperature resistant mica insulation sheet with excellent dielectric strength and thermal stability
Thickness: 0.5-100mm | Temp Class: H (180°C)
View Details

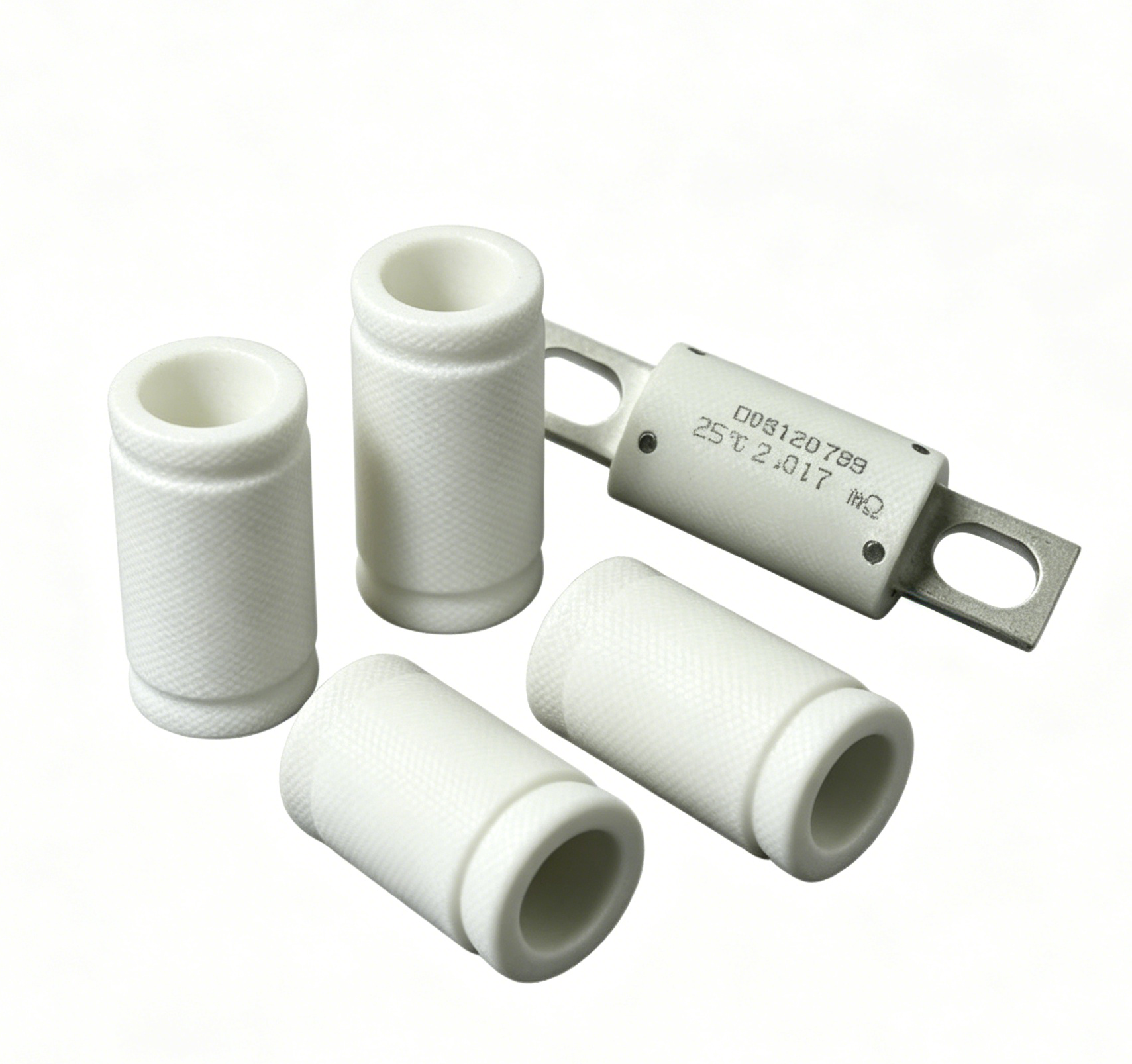

MELAMINE TUBE
The composite material tube is made primarily from melamine resin and processed through specific techniques. Depending on its application, it is mainly divided into insulation structure tubes and fuse tubes/fuse-link tubes.
ID: 6-500mm | Temp Class: B (130°C)
View Details

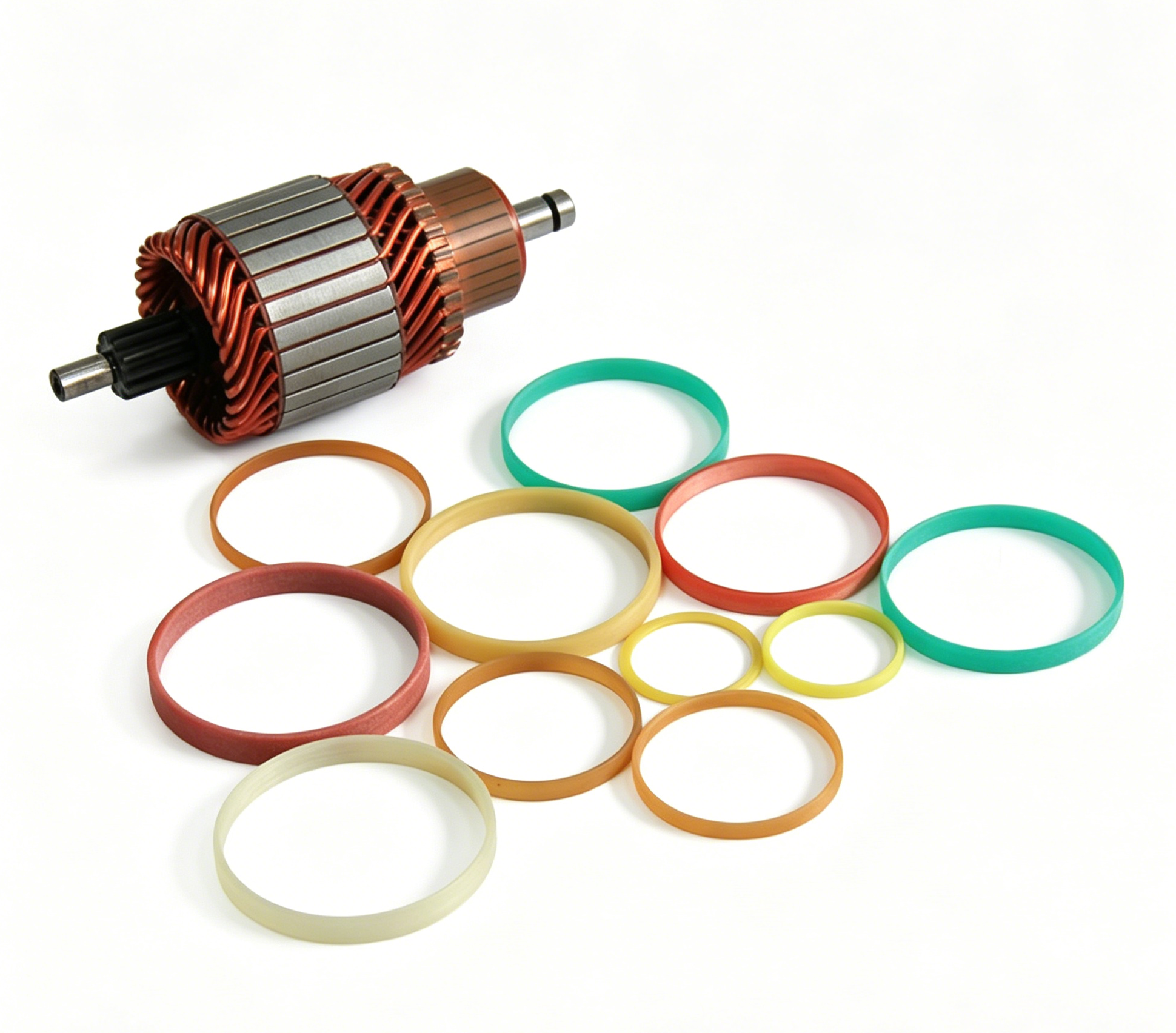

COMMUTATOR STARTOR REINFORCEMENT RING
Special insulation ring for motor Commutator and Startor reinforcement with high mechanical strength
Customizable sizes | Temp Class: C (220°C)
View Details

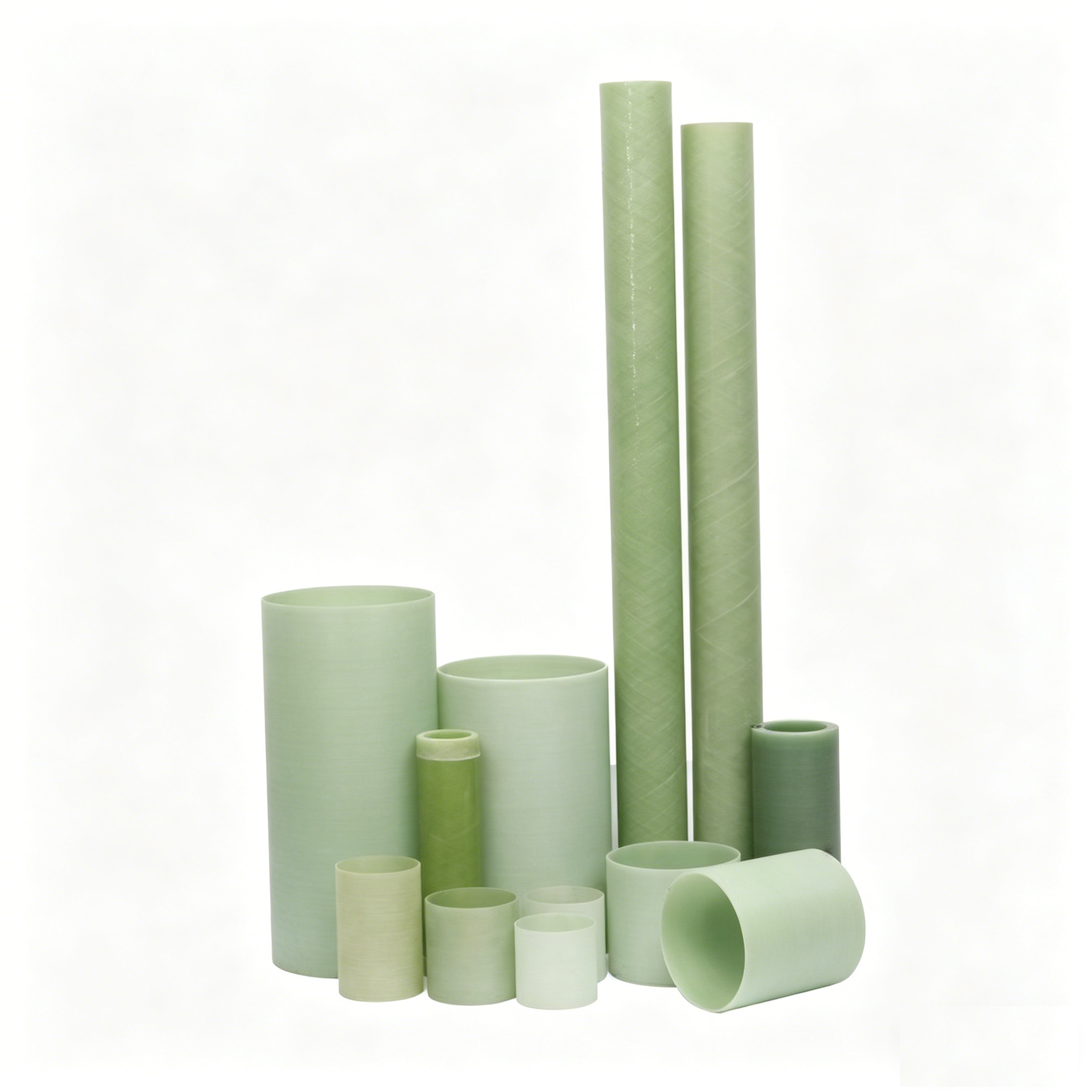

EPOXY GLASS FIBER TUBE
•Molding Process: Manufactured by continuous fiber wet winding technology. •Winding Angle: ±50°～55°, which can be adjusted according to customer requirements to meet your mechanical performance needs. •Dimensional Specifications: ￮Inner Diameter: ＞6mm ￮Outer Diameter: ＜600mm ￮Length: ＜3000mm •Heat Resistance Class: Class B, Class F, Class H
ID: 10-300mm | Temp Class: F (155°C)
View Details
INSULATOR
High-voltage insulation components for electrical equipment with superior dielectric performance
Various sizes available | Temp Class: F (155°C)
View Details

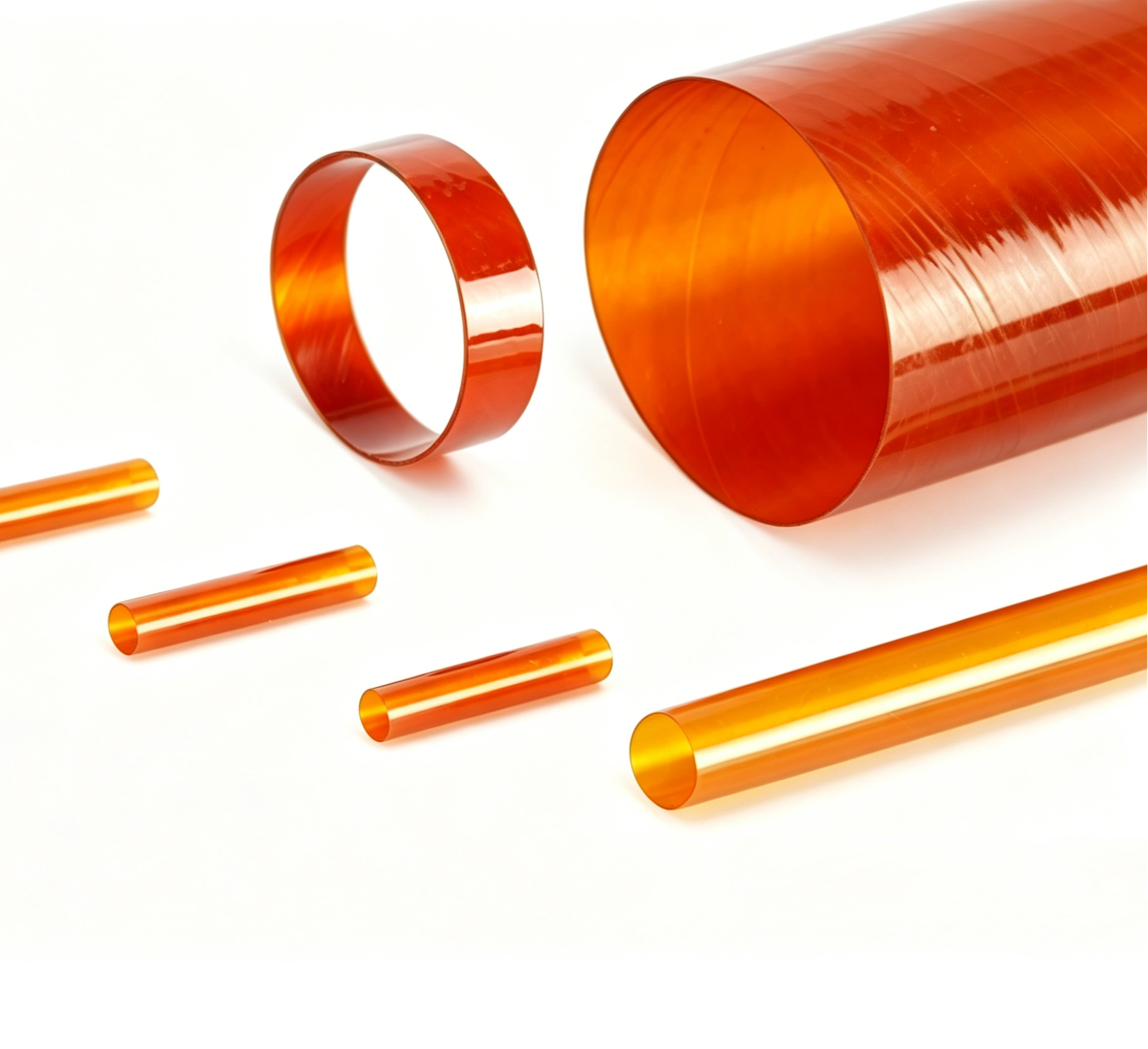

PI TUBE
Polyimide tube with exceptional high-temperature resistance and electrical insulation
ID: 2-100mm | Temp Class: C (400°C)
View Details

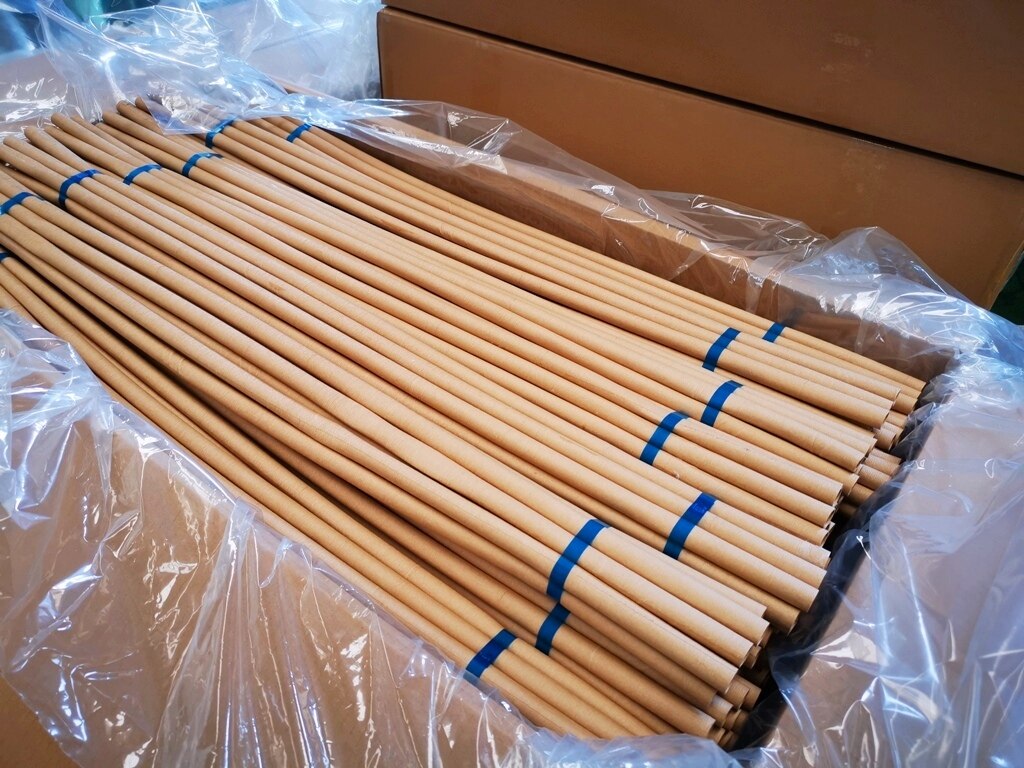

CREPE PAPER TUBE
Crepe paper tube with excellent electrical insulation and mechanical strength for transformer applications
ID: 20-500mm | Temp Class: B/F/H (130-180°C)
View Details
FH & FHF POLYIMIDE FILM
The F-coated polyimide film is made by using HN polyimide film as the substrate and coating a certain thickness of F46 (FEP) resin on one or both sides of its surface.
Specifications: FNH type and FHNF type
View Details
POLYESTER FILM
High dielectric strength polyester film
Width: 10-500mm | Temp Class: B (130°C)
View Details

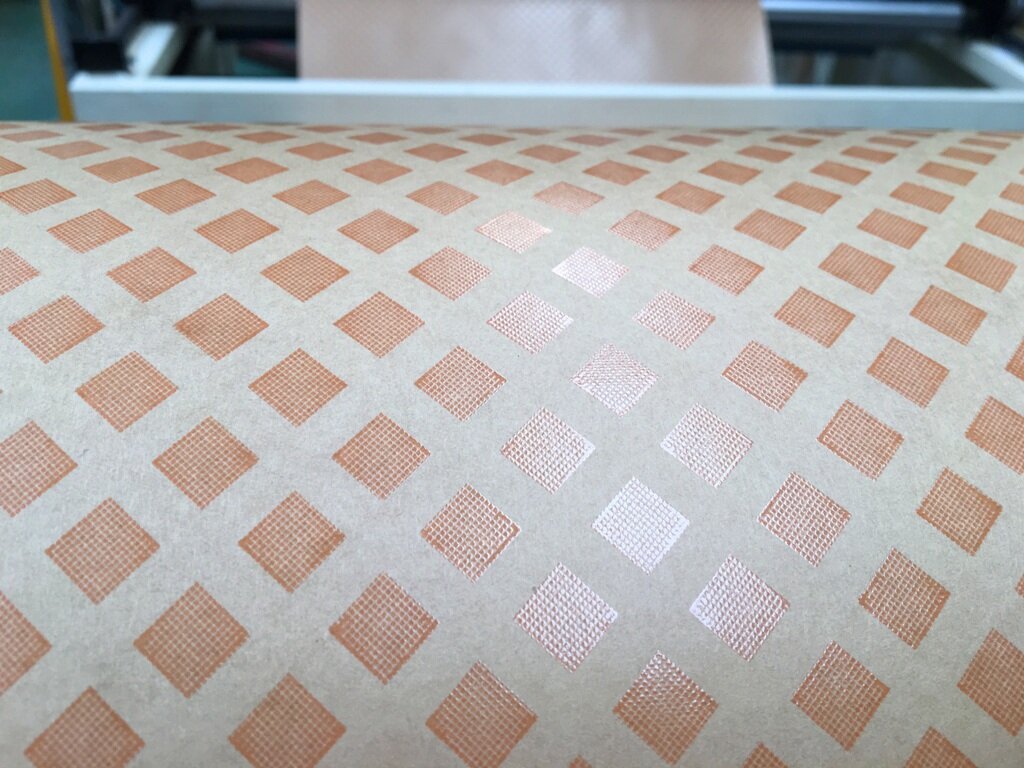

DIAMOND DOTTED PAPER
Diamond Dotted Paper (DPP), commonly known as diamond grid adhesive dotted paper, is a double-sided composite insulating material with special modified epoxy resin coated in diamond grid dots on electrical insulating paper (cable paper/high-density insulating paper). It is dry and non-sticky at room temperature, melts and cures when heated, specially designed for oil-immersed transformer insulation.
Thickness: 0.08-0.35mm | Temp Class: B (130°C)
View Details

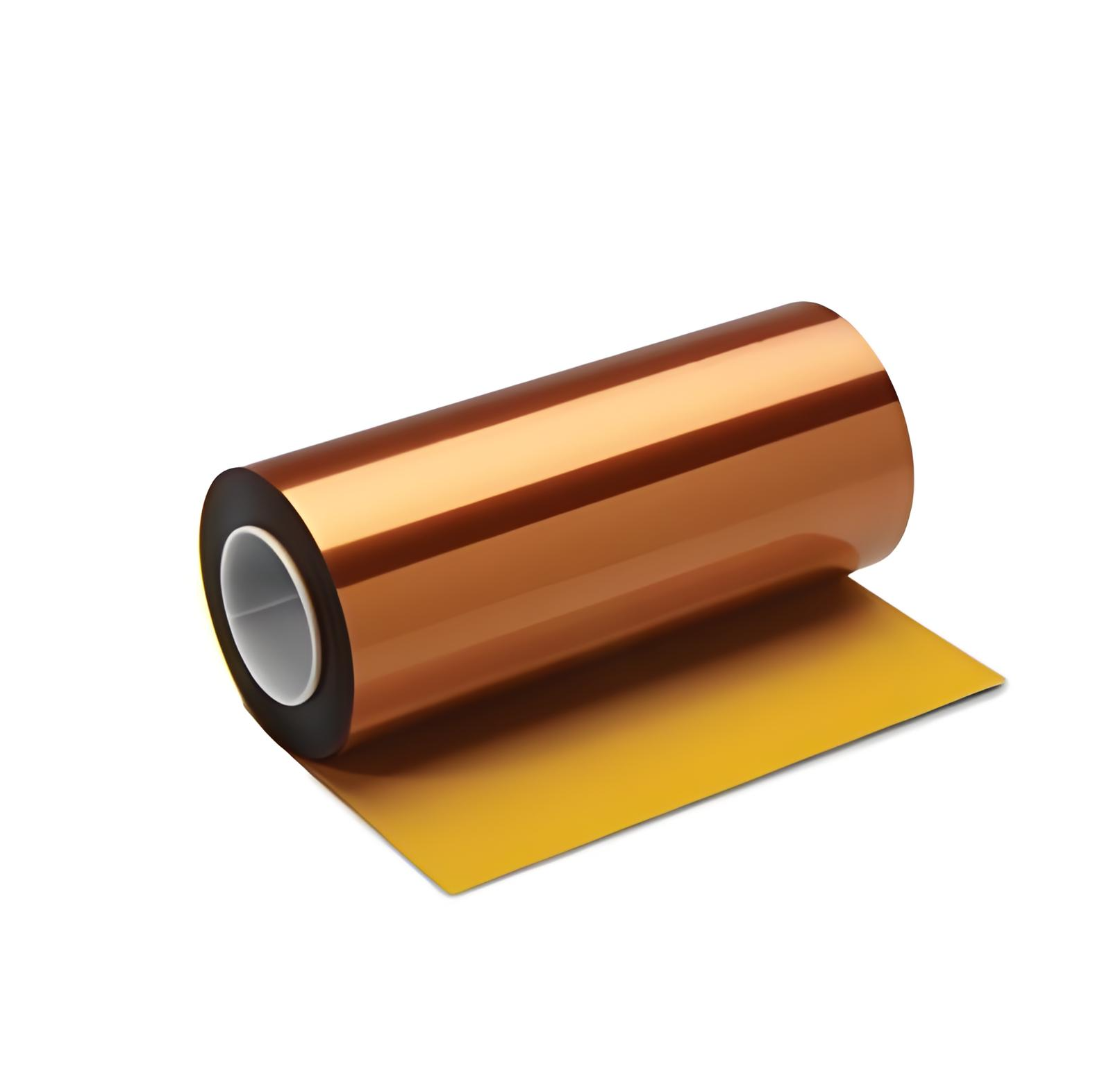

POLYIMIDE FILM
High-performance organic polymer film with excellent mechanical properties, temperature resistance -269°C to +400°C, chemical resistance, and electrical performance
Thickness: 0.025-0.100mm | Temp Class: C (400°C)
View Details

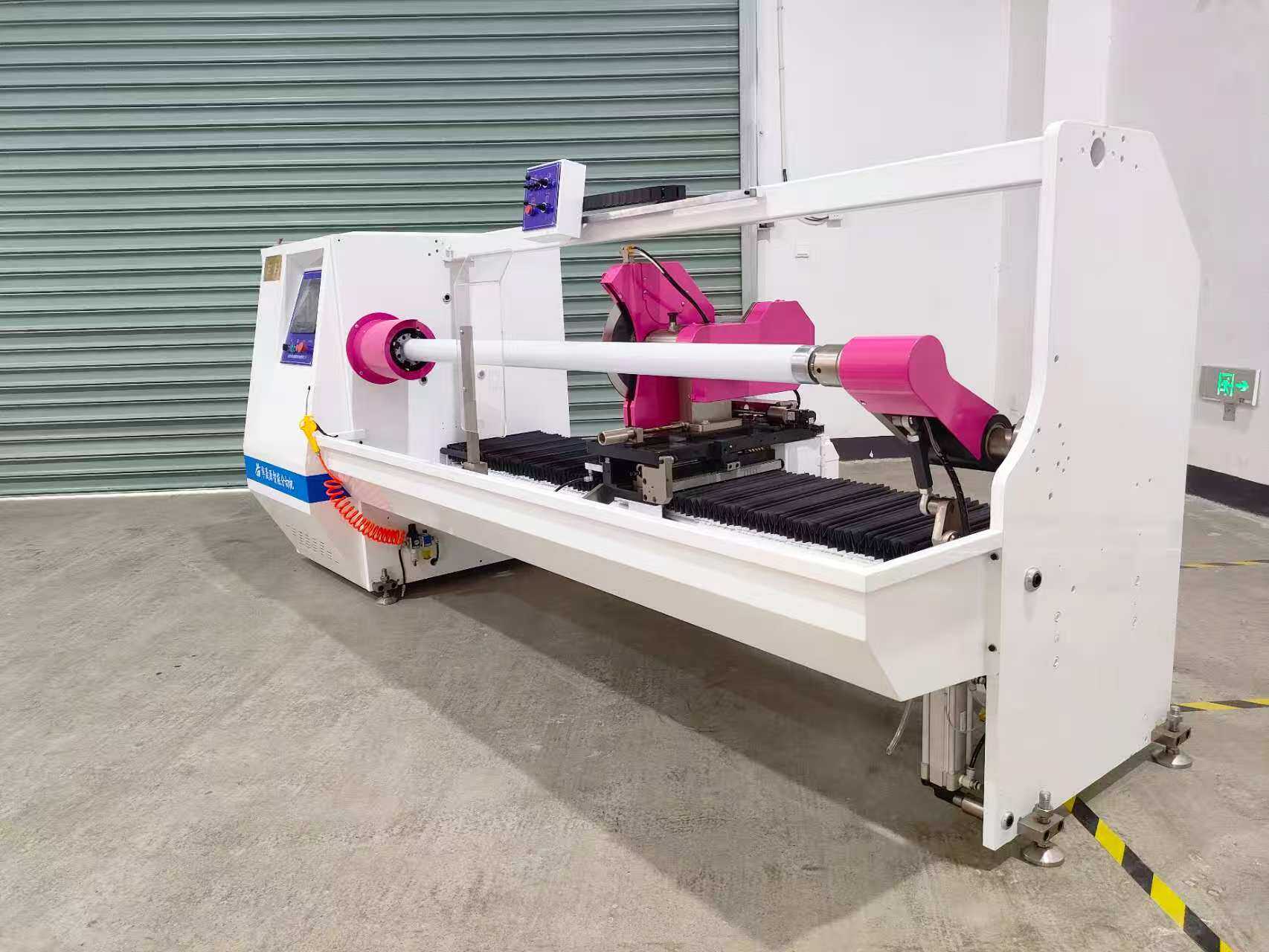

SLITTING MACHINE
Professional slitting machine series for insulation materials processing, including automatic slitting machine, paper cutting machine, coil winding machine, and insulation board processing center
Various models available for different applications
View Details

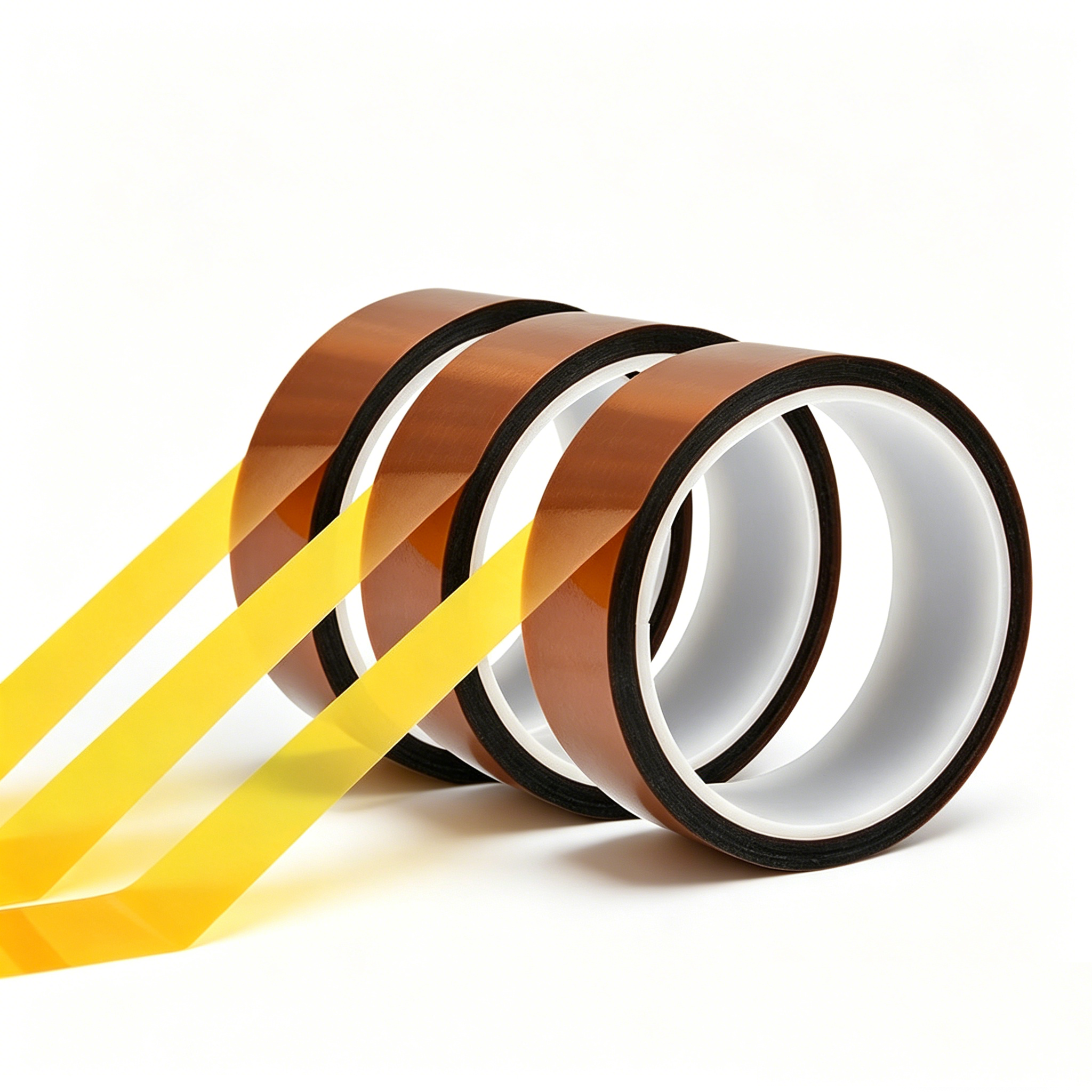

PI ADHESIVE TAPE
Polyimide tape is based on polyimide film and coated with high-performance silicone pressure-sensitive adhesive on one or both sides. It is widely used in the electronics industry and circuit board manufacturing industry. It has high temperature resistance and high tensile strength. , Chemical resistance, no residual glue, in line with ROSH environmental protection, halogen-free, UL certification.
Thickness: 0.035-0.15mm | Temp Class: H (180°C)
View Details

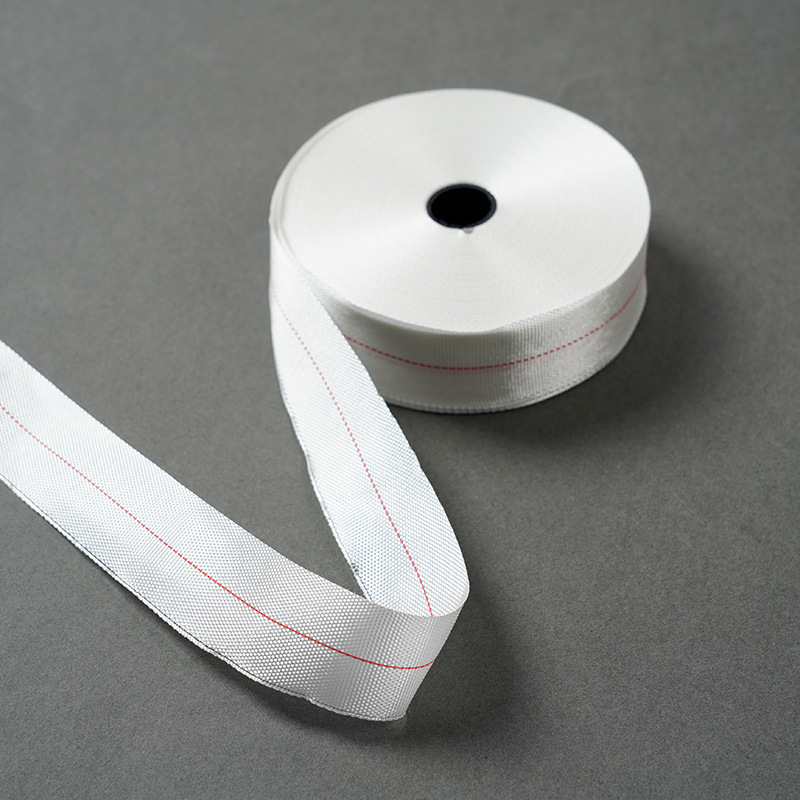

GLASS CLOTH TAPE
E-glass cloth tape have features of good insulation, high temperature resistance and so on. It is used as an essential insulating material for motor and electrical machinery and appliance. The tapes serials of ETS, are woven with E-glass fiber yarn without wax(finished with Amino Silame sizing), which progress properties of fold durability if need be and then face impregnated processed with sizing wear resisting and good impregnation.
Thickness: 0.1-0.4mm | Temp Class: H (180°C)
View Details

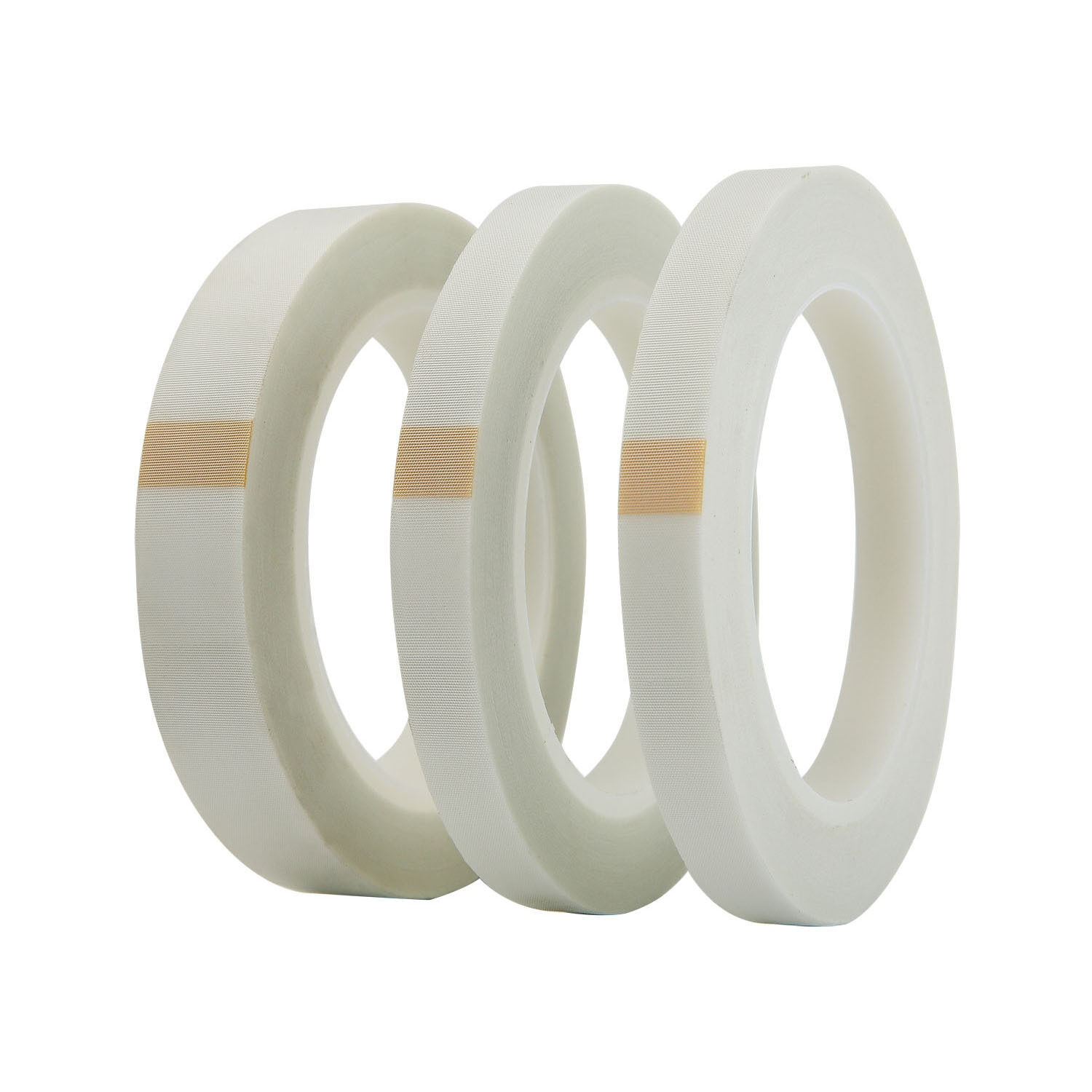

GLASS CLOTH ADHESIVE TAPE
Glass Cloth Adhesive Tape is based on glass cloth tape and coated with high-performance silicone adhesive on it.
Thickness: 0.13-0.25mm | Temp Class: H (180°C)
View Details

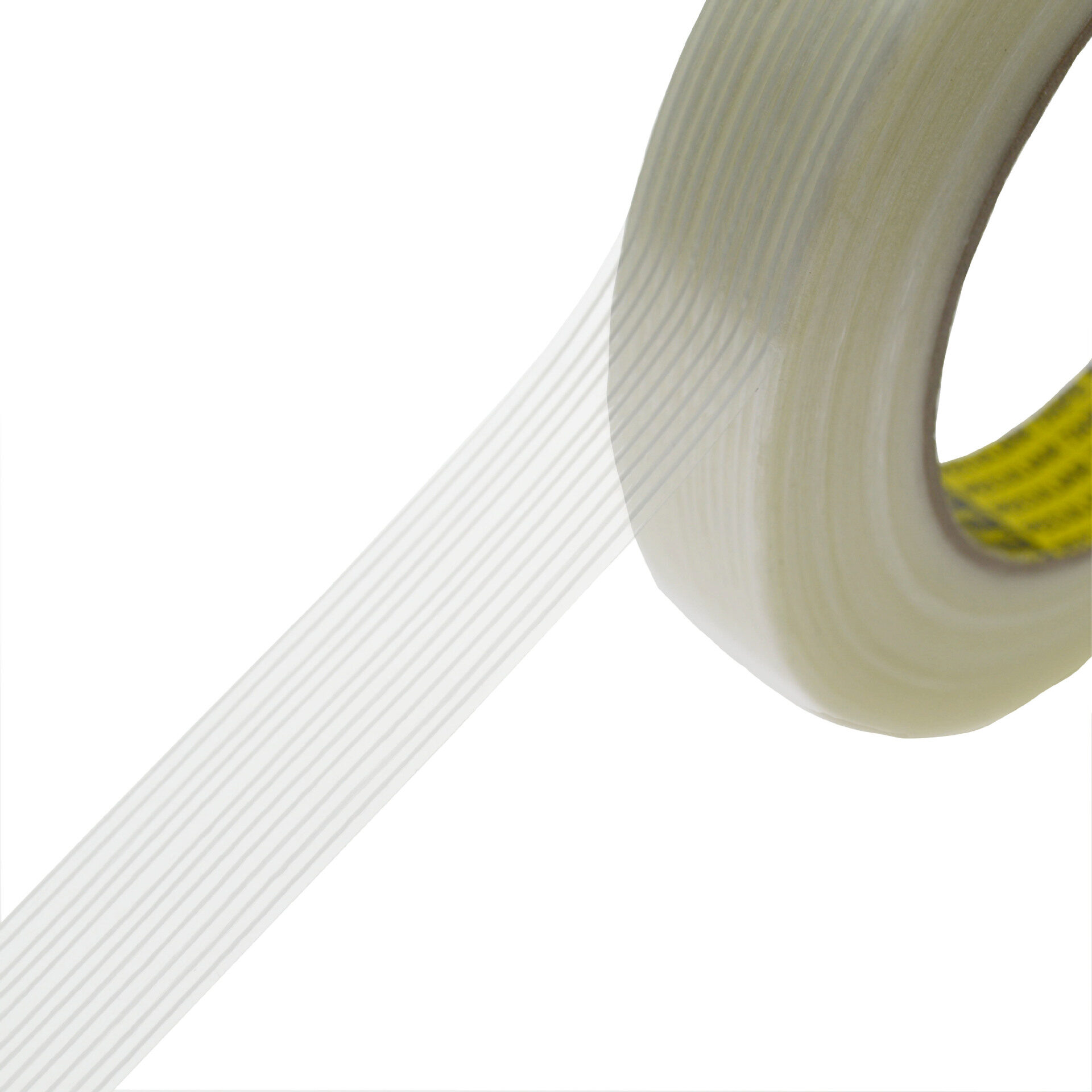

GLASS FIBER ADHESIVE TAPE
Backed by a PET film, reinforced with unidirectional glass fibers, and coated with high-performance pressure-sensitive adhesive, this tape features outstanding abrasion resistance. It is ideal for medium-strength applications including packaging, bundling, carton sealing, and pipe securing during transit.
Width: 10-1060mm | Temp Class: Room Temperature
View Details

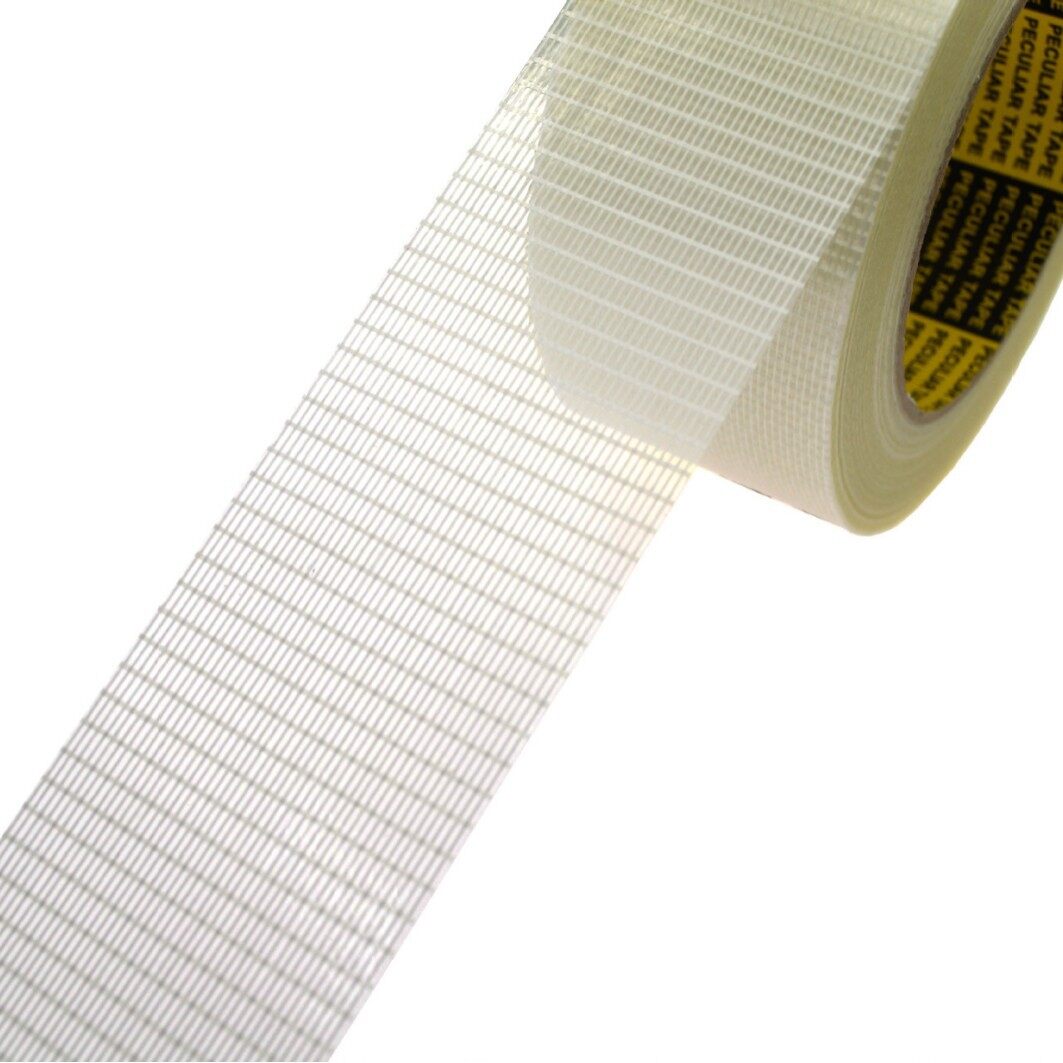

GLASS MESH ADHESIVE TAPE
This tape features a PET film backing reinforced with bidirectional glass fibers, coated with a high-performance, high-tack adhesive. With excellent abrasion resistance, it is suitable for medium-strength applications including packaging, bundling, carton sealing, and pipe securing during transit.
Width: 10-1060mm | Temp Class: Room Temperature
View Details

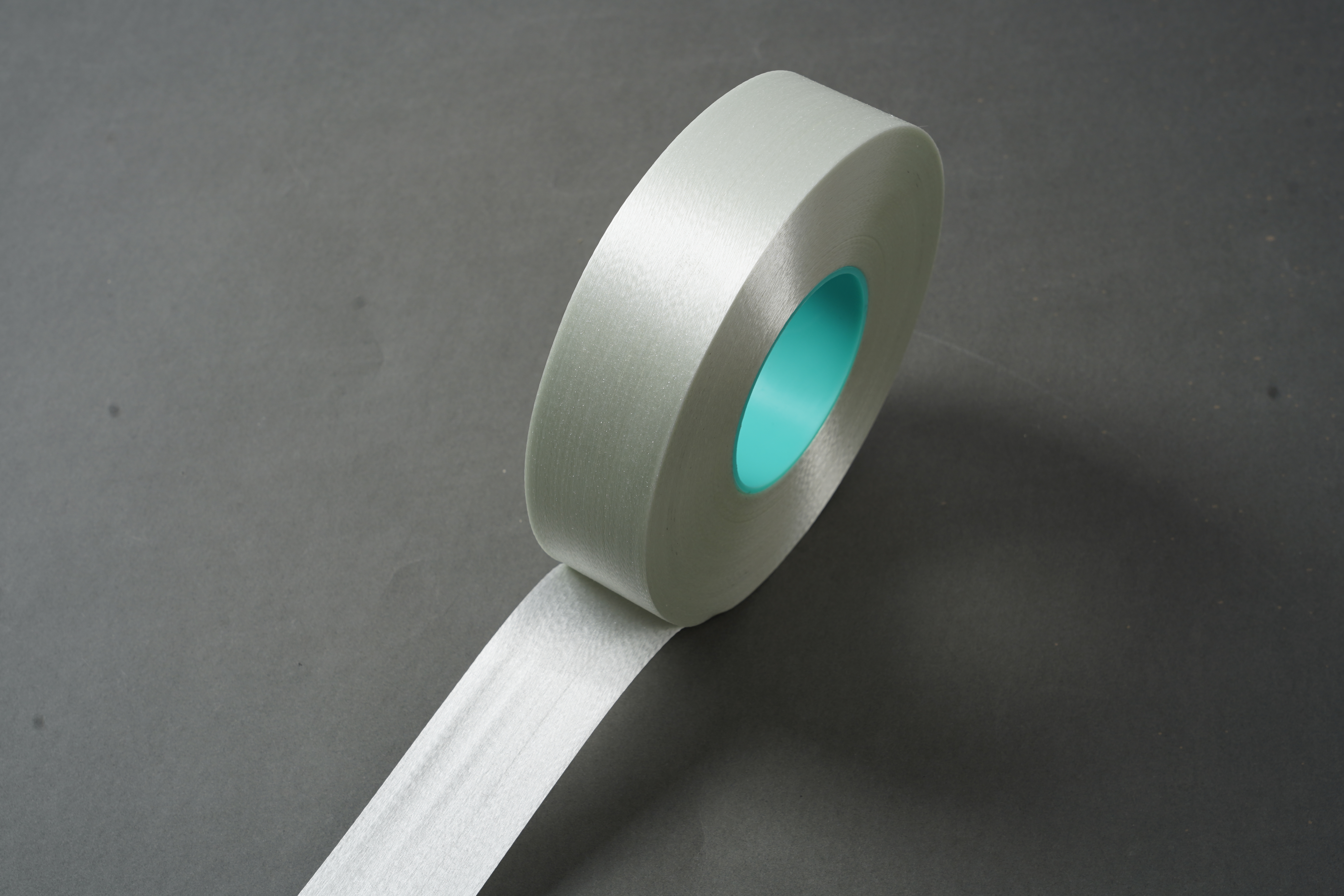

GLASS CURING BANDING TAPE
Made of high-quality glass fiber filaments bonded together without a weaving structure, it features high tensile strength, excellent electrical insulation, and superior heat resistance, making it ideal for electrical and mechanical applications. Widely used in DC motors, traction motors, large generators, transformers, lightning arresters and so on. The product is available in two specifications: F155℃ and H180℃.
Temp Class: F (155°C) / H (180°C)
View Details

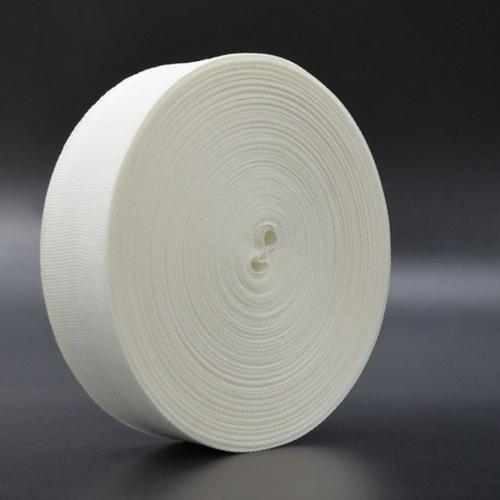

COTTON TAPE
Cotton tape with good flexibility and mechanical protection for wire harnessing and cable wrapping
Thickness: 0.20-0.40mm | Temp Class: A (105°C)
View DetailsNeed Custom Solutions?
We offer customized insulation solutions tailored to your specific requirements
Contact Our Engineers
