DD-G10
G10 G11 EPGC SERIES
Thickness: 0.5-50mm | Temp Class: F (155°C)
The G10/G11/EPGC series epoxy boards are all made of glass cloth as the base material (G10/G11 are electronic-grade glass cloth, while the EPGC series uses 7628 glass cloth). They are impregnated with epoxy resin system glue and cured through high-temperature hot pressing to form rigid laminated insulating boards.

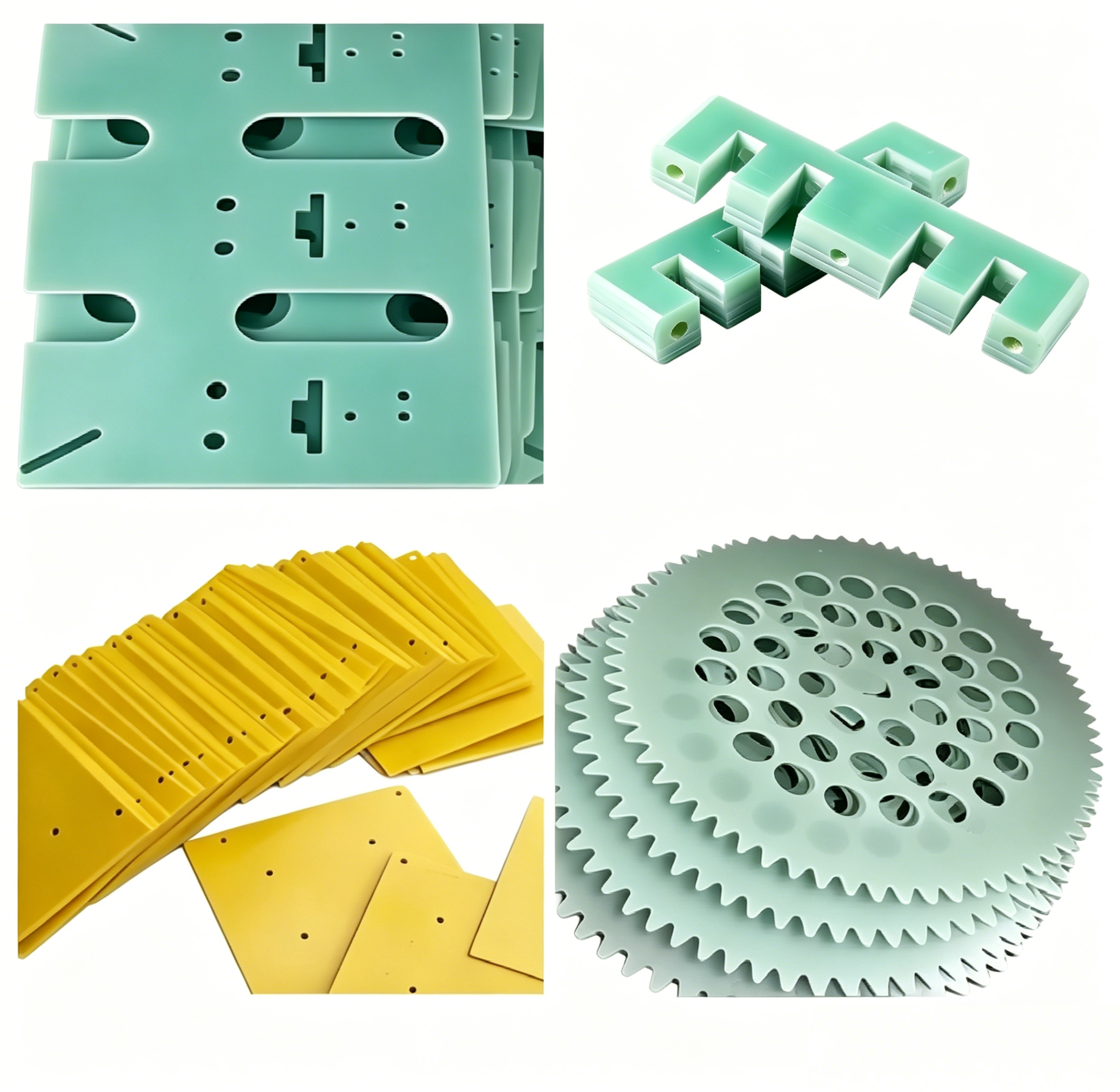

Product Image
| Test Items | Values |
|---|---|
| Main Applications - G10/G11 | Used as insulating structural components in transformers, high-voltage switchgear, high-voltage switches, and motor equipment. |
| Main Applications - EPGC308 | Used as insulating structural components in H-grade motors and electrical equipment. |
| Main Applications - EPGC203 | Used as insulating structural components in Class F motors and electrical equipment. |
| Main Applications - EPGC204 | Used as insulating structural components in Class F motors and electrical equipment with flame retardant requirements. |
