DD-GCT
GLASS CLOTH TAPE
Thickness: 0.1-0.4mm | Temp Class: H (180°C)
E-glass cloth tape have features of good insulation, high temperature resistance and so on. It is used as an essential insulating material for motor and electrical machinery and appliance. The tapes serials of ETS, are woven with E-glass fiber yarn without wax(finished with Amino Silame sizing), which progress properties of fold durability if need be and then face impregnated processed with sizing wear resisting and good impregnation.

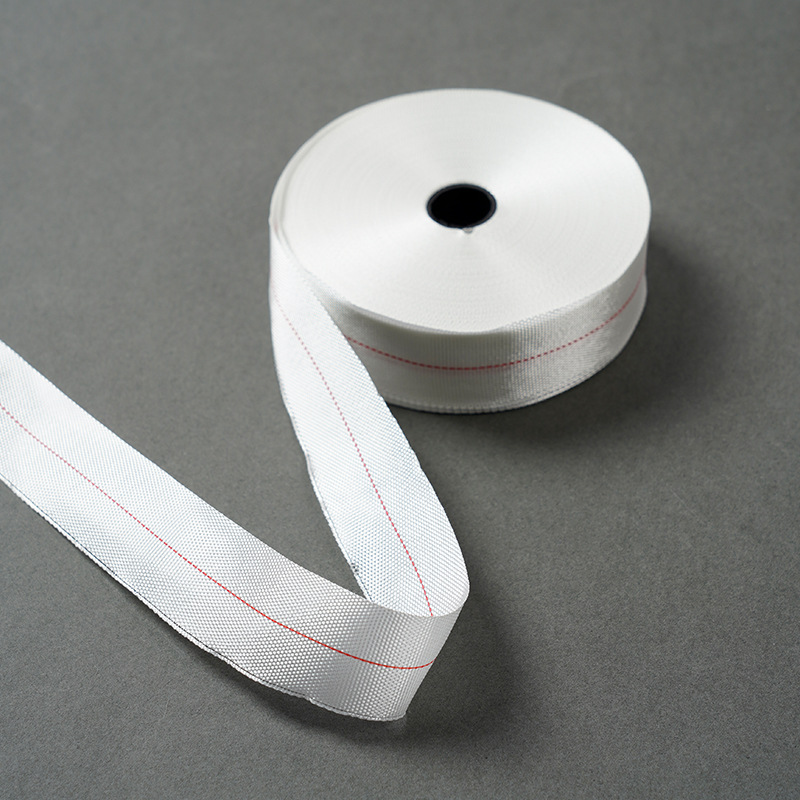

Product Image

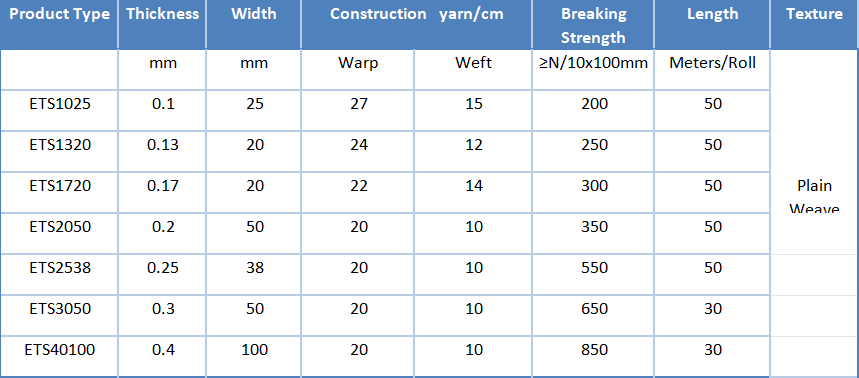

| Test Items | Values |
|---|---|
| Product Type | ETS1025 | ETS1320 | ETS1720 | ETS2050 | ETS2538 | ETS3050 | ETS40100 |
| Thickness (mm) | 0.1 | 0.13 | 0.17 | 0.2 | 0.25 | 0.3 | 0.4 |
| Width (mm) | 25 | 20 | 20 | 50 | 38 | 50 | 100 |
| Construction Warp (yarn/cm) | 27 | 24 | 22 | 20 | 20 | 20 | 20 |
| Construction Weft (yarn/cm) | 15 | 12 | 14 | 10 | 10 | 10 | 10 |
| Breaking Strength ≥N/10x100mm | 200 | 250 | 300 | 350 | 550 | 650 | 850 |
| Length (Meters/Roll) | 50 | 50 | 50 | 50 | 50 | 30 | 30 |
| Texture | Plain Weave |
