DD-FLEX

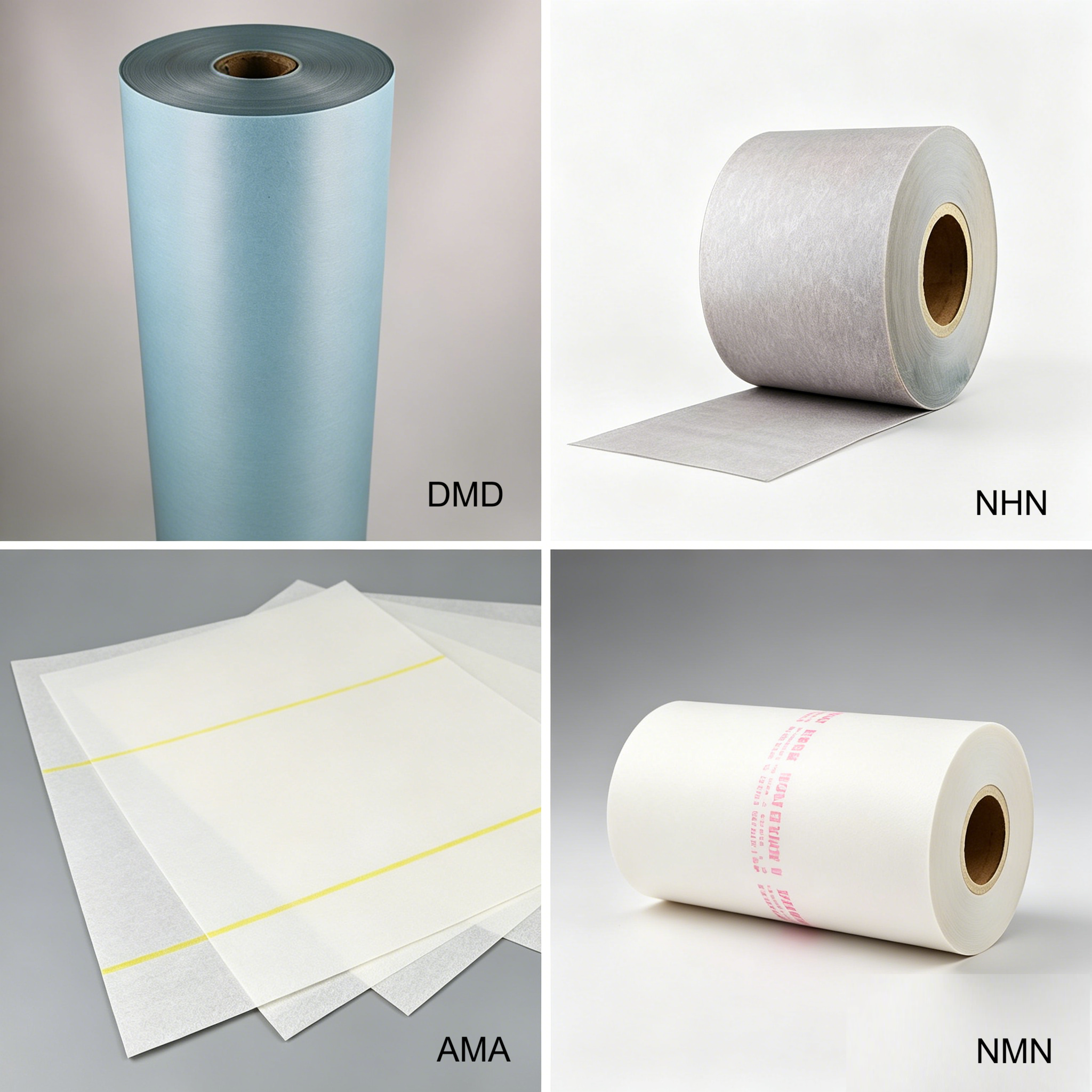

DMD AMA NMN NHN
Thickness: 0.14-0.50mm | Temp Class: B/F/H (130-180°C)
Flexible composite insulation materials for motor and transformer applications
Product Image

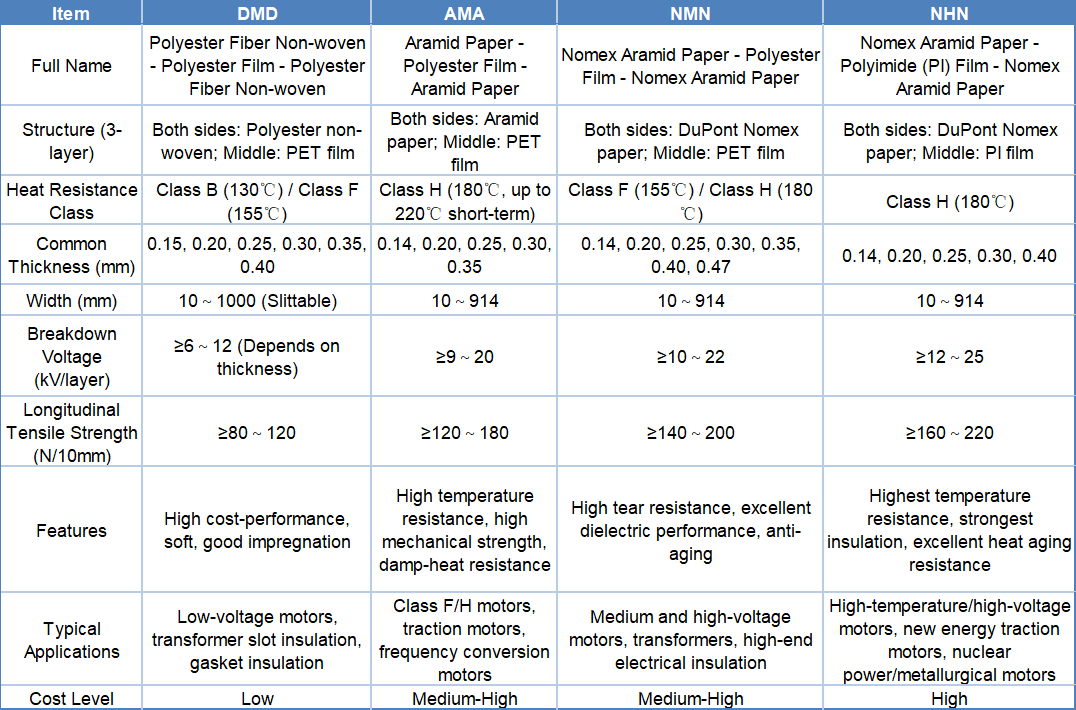

| Test Items | Values |
|---|---|
| DMD | Polyester non-woven + PET film composite | Heat class: B/F (130-155℃) | Cost-effective, soft texture, good impregnation | Application: Low voltage motor & transformer slot insulation |
| AMA | Aramid paper + PET film composite | Heat class: H (180℃) | High mechanical strength, heat & moisture resistant | Application: F/H grade motor, inverter motor, traction motor |
| NMN | Nomex paper + PET film composite | Heat class: F/H (155-180℃) | Superior tear strength, dielectric performance & anti-aging | Application: Medium & high voltage motor, large transformer |
| NHN | Nomex paper + PI film composite | Heat class: H (180℃) | Top-level heat resistance, insulation and thermal stability | Application: New energy traction motor, nuclear power & high-temperature special electrical equipment |
