DD-GPO3
GPO3
Thickness: 0.8-50mm | Temp Class: F (155°C)

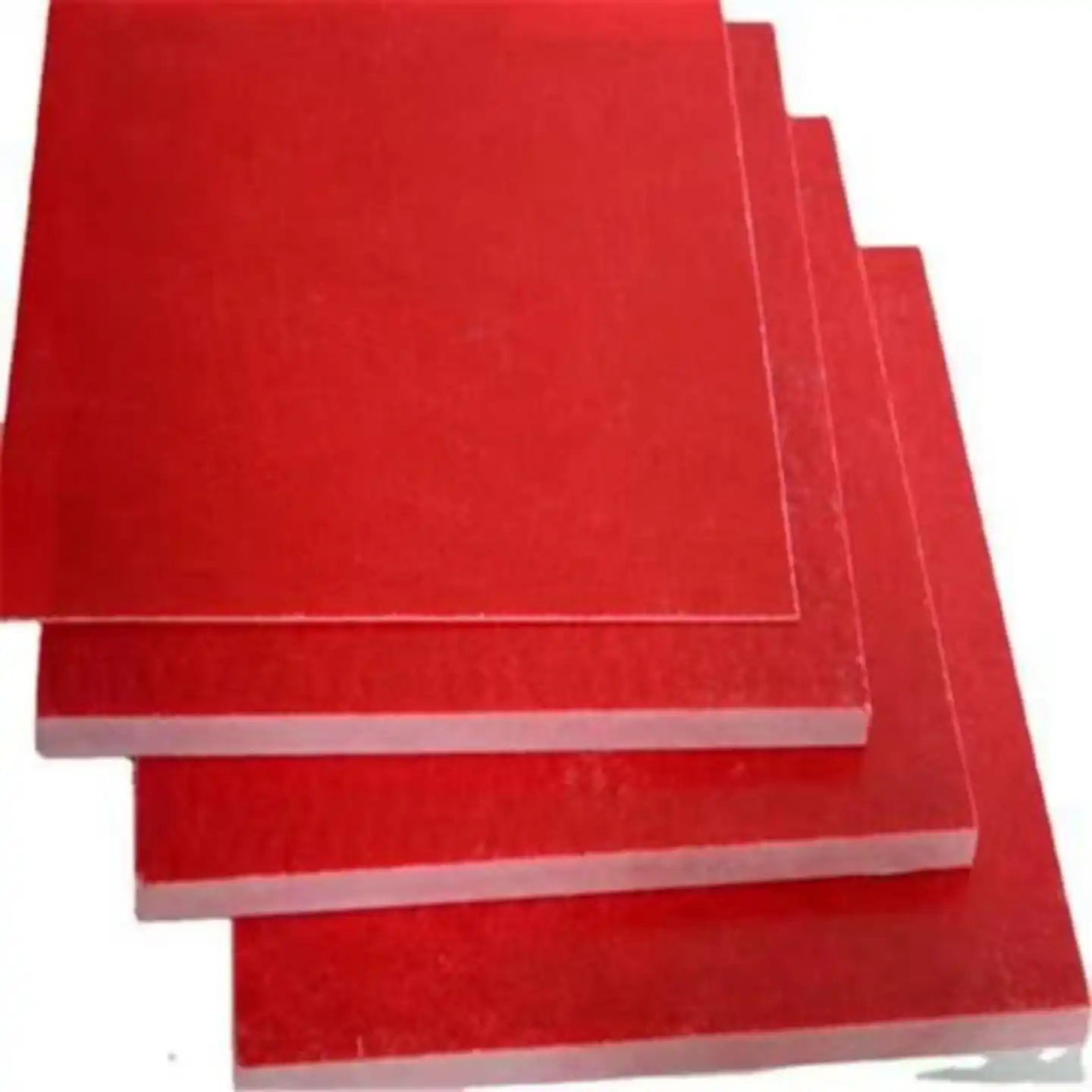

Unsaturated polyester glass fiber reinforced sheet with excellent electrical insulation, flame retardancy and arc resistance
| Test Items | Values |
|---|---|
| Product Structure | Made of unsaturated polyester resin as matrix, reinforced with glass fiber, formed through continuous lamination process |
| Product Performance - Electrical Properties | Excellent electrical insulation, dielectric strength ≥15KV/mm, volume resistivity ≥1.0×10¹²Ω·m, arc resistance ≥180s |
| Product Performance - Flame Retardancy | UL94 V-0 flame retardant rating, self-extinguishing, low smoke emission |
| Product Performance - Mechanical Strength | High tensile strength ≥300MPa, flexural strength ≥400MPa, good impact resistance |
| Product Uses | Widely used in electrical switchgear, distribution boxes, motor end caps, transformer insulation components, electrical equipment structural parts |
